SECURITY ADVISORY: Environments operating Deepset Haystack AI (haystack-ai) with the unsafe feature enabled are susceptible to framework integrity compromise via serialization bypass. This research demonstrates CVSS 10.0 Scope Change attacks that persist beyond application restarts, enabling permanent infrastructure compromise. Organizations are advised to implement the runtime security patches detailed in Appendix A to enforce strict serialization boundaries pending upstream architectural shifts.

SECURITY ADVISORY | JDP-2026-005

Architectural Boundary Limitations: RCE via Serialization Bypass and Persistent Framework Compromise in Haystack

Research Series: JDP Security Research Series (Disclosure #5)
Researcher: Jeff Ponte (CISSP, CCSP, CEH) | Lead Researcher, JDP Security
Target: Deepset Haystack (haystack-ai)
Affected Versions: All versions supporting the unsafe feature (Including Current Releases) Proposed Taxonomy: AISEC-01: Insecure AI Orchestration (Framework Integrity Compromise) CVSS v3.1 Score: 10.0 (Critical) | Vector: CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:C/C:H/I:H/A:H
Status: Vendor Classification: Accepted Risk / Intended Behavior (Unmitigated) —

Executive Highlights:

1. Executive Summary: Architectural Boundary Limitations

This advisory documents a critical architectural vulnerability within the Haystack AI framework, specifically located in the from_dict() and from_yaml() deserialization methods. These methods implicitly trust security configuration flags embedded within untrusted payloads. Attackers can manipulate serialized pipeline definitions to arbitrarily toggle the unsafe security flag from False to True, effectively bypassing the Jinja2 sandbox and achieving unrestricted system execution.

Insecure AI Orchestration: This vulnerability highlights the emerging risks associated with Insecure AI Orchestration, wherein the orchestration framework itself acts as a “Confused Deputy.” This occurs when a framework fails to enforce a rigid, deterministic isolation boundary between its internal security configuration and untrusted data payloads, allowing an attacker to dictate the framework’s security posture via the data it processes.

Trust Boundary Violation: The framework documents the unsafe parameter as a security control but does not implement integrity validation during deserialization. This constitutes a severe trust boundary violation; the security mechanism designed to restrict execution is natively controllable by the execution payload itself.

Code Analysis Reveals:

  1. Unvalidated Input Routing: default_from_dict() passes all init_params directly to component constructors without sanitation.
  2. Missing Flag Validation: Core components such as OutputAdapter and ConditionalRouter do not strip or restrict unsafe flags during deserialization.
  3. Insecure Data Processing: The serialization logic merges application security configurations with untrusted data ingress.
  4. Implementation Lifecycle Gap: The unsafe feature was introduced in commit 3e3f79b9285c5b56432aac3e4ef2309e5f31ea74 without corresponding safeguards in the from_dict hydration pipeline.

Exploitation Risks:

2. CVSS v3.1 & CWE Mapping

The score of 10.0 is justified by the following vector: AV:N/AC:L/PR:N/UI:N/S:C/C:H/I:H/A:H

Primary CWE Mappings:

3. Forensic Evidence: Architectural Source Analysis

A. OutputAdapter.from_dict() - Unvalidated Input (Lines 161-179):

def from_dict(cls, data: dict[str, Any]) -> "OutputAdapter":
    """
    Deserializes the component from a dictionary.
    """
    init_params = data.get("init_parameters", {})
    init_params["output_type"] = deserialize_type(init_params["output_type"])

    custom_filters = init_params.get("custom_filters", {})
    if custom_filters:
        init_params["custom_filters"] = {
            name: deserialize_callable(filter_func) if filter_func else None
            for name, filter_func in custom_filters.items()
        }
    return default_from_dict(cls, data)  # LACKS UNSAFE FLAG STRIPPING

B. ConditionalRouter.from_dict() - Unvalidated Input (Lines 280-304):

def from_dict(cls, data: dict[str, Any]) -> "ConditionalRouter":
    """
    Deserializes the component from a dictionary.
    """
    init_params = data.get("init_parameters", {})
    routes = init_params.get("routes")
    for route in routes:
        if isinstance(route["output_type"], list):
            route["output_type"] = [deserialize_type(t) for t in route["output_type"]]
        else:
            route["output_type"] = deserialize_type(route["output_type"])

    custom_filters = init_params.get("custom_filters", {})
    if custom_filters is not None:
        for name, filter_func in custom_filters.items():
            init_params["custom_filters"][name] = deserialize_callable(filter_func) if filter_func else None
    return default_from_dict(cls, data)  # LACKS UNSAFE FLAG STRIPPING

C. default_from_dict() - Unrestricted Deserialization (serialization.py):

def default_from_dict(cls: type[T], data: dict[str, Any]) -> T:
    """
    Utility function to deserialize a dictionary to an object.
    """
    init_params = data.get("init_parameters", {})
    # ... type validation only ...
    return cls(**init_params)  # PASSES ALL PARAMETERS TO CONSTRUCTOR UNFILTERED

D. Architectural Limitations vs. Implementation The root cause is located in haystack/core/serialization.py. The deserialization sink exists because default_from_dict functions as a direct pass-through, mapping untrusted dictionary keys directly to Python class constructor arguments (**init_params).

By implementing the unsafe flag as a standard constructor argument, the architecture implicitly grants the payload identical authority to the developer regarding security configuration.

E. Codebase Validation:

# Audit confirms absence of security flag stripping in affected components:
$ grep -n "pop.*unsafe\|unsafe.*pop" haystack/components/converters/output_adapter.py
# NO OUTPUT - Mitigation absent

$ grep -n "pop.*unsafe\|unsafe.*pop" haystack/components/routers/conditional_router.py
# NO OUTPUT - Mitigation absent

$ grep -i "unsafe\|security" haystack/core/serialization.py
# NO OUTPUT - Security validation absent in serialization engine

4. Exploitation Lifecycle

The following analysis details the exploitation methodology, verified via forensic terminal recordings (see Appendix C).

A. Pipeline Manipulation

B. Scope Change & Persistent Compromise

5. The OWASP Bridge: Proposing AISEC-01 (Insecure AI Orchestration)

Traditional AppSec models emphasize vulnerabilities such as Insecure Deserialization (CWE-502) and align with frameworks like the OWASP Top 10. However, this disclosure underscores a specialized, emerging threat vector necessitating expansion of the OWASP Top 10 for LLM Applications: Insecure AI Orchestration.

This occurs when an AI framework fails to enforce an absolute, deterministic boundary between operational “System Configuration” and “Untrusted Stochastic Data.” When orchestration logic permits execution toggles to be dictated by the data payloads they are intended to govern, traditional LLM sandboxing controls (such as containerization and output parsing) become ineffective. This architectural vulnerability proves that AI orchestration frameworks introduce fundamental infrastructure risks that standard vulnerability scanning and LLM safety benchmarks currently overlook.

6. Implementation Context: Commit 3e3f79b9285c5b56432aac3e4ef2309e5f31ea74

Commit: 3e3f79b9285c5b56432aac3e4ef2309e5f31ea74 Date: September 2, 2024 Context: Analysis indicates that while the vendor explicitly intended to gate sensitive execution behaviors behind a flag, the implementation omitted the necessary validation logic within the serialization engine.

Original Release Notes:

features:
  - |
    Add `unsafe` argument to enable behaviour that could lead to remote code execution in `ConditionalRouter` and `OutputAdapter`.
    By default unsafe behaviour is not enabled, the user must set it explicitly to `True`.

Vulnerability Introduction:

# From commit 3e3f79b9285c5b56432aac3e4ef2309e5f31ea74
class OutputAdapter:
    def __init__(self, template: str, output_type: type, unsafe: bool = False):
        self._unsafe = unsafe  # Control definition...

    @classmethod
    def from_dict(cls, data: Dict[str, Any]) -> "OutputAdapter":
        init_params = data.get("init_parameters", {})
        return cls(
            template=init_params.get("template", ""),
            output_type=init_params.get("output_type", str),
            unsafe=init_params.get("unsafe", False)  # ...Control bypassable via untrusted dictionary.
        )

7. Impact Analysis: Persistent Framework Compromise (Scope Change)

This vulnerability necessitates a Critical (10.0) classification due to the verified Scope Change (S:C). The initial code execution achieved via the serialization bypass allows an attacker to modify core library binaries on the host filesystem.

Exploitation Trajectory:

  1. Ingestion: The orchestration engine processes a maliciously crafted YAML pipeline, resolving the unsafe flag to true.
  2. Escalation: The payload breaches the Jinja2 boundary, acquiring write permissions to the Python site-packages directory.
  3. Modification: The attacker injects persistent code into the global haystack/__init__.py file.
  4. Persistence: Any subsequent application or service on that host invoking the haystack library executes the injected code synchronously.

8. Threat Modeling Divergence & Current Status

A. Vendor Risk Classification In response to the coordinated disclosure, Deepset’s Security Team provided the following assessment, highlighting a divergence in threat modeling paradigms between the framework maintainers and enterprise security practitioners:

“After an internal investigation, we don’t consider this a security vulnerability in the Haystack framework… We classify this as trusted configuration behavior rather than a framework vulnerability, and we will not be treating it as a security issue.” - Julian Risch, Deepset (April 1, 2026)

B. Release Verification (v2.28.0) Following the disclosure window, the vendor released haystack-ai v2.28.0 on April 20, 2026. Forensic diffing confirms the framework’s continued adherence to this design philosophy, with no serialization validation implemented:

$ git tag --list | grep 2.28
v2.28.0

$ git log --oneline -1 66af63798
66af63798 (tag: v2.28.0, origin/v2.28.x) bump version to 2.28.0

$ git show 66af63798 --stat
VERSION.txt | 2 +-
1 file changed, 1 insertion(+), 1 deletion(-)

C. Active Status Last Analysis: Repository HEAD Vendor Stance: Accepted Risk / Intended Behavior Security State: UNMITIGATED - The vulnerability remains fully exploitable within default deployments. Detection Status: False Negative expected across standard DAST/SAST scanners due to lack of CVE assignment.

9. Mitigation & Remediation Guidelines

Immediate Enterprise Actions:

  1. Assume Compromise Model: Treat deployments processing external Haystack pipelines as potentially vulnerable.
  2. Forensic Filesystem Auditing: Verify the integrity of the framework source on disk: tail -n 5 /usr/local/lib/python3.x/site-packages/haystack/__init__.py
  3. Execution Isolation: Strongly segment Haystack worker nodes from highly privileged infrastructure.
  4. Telemetry Detection: Deploy runtime monitoring to detect unexpected instantiation of the unsafe flag.

Application-Layer Mitigations (Virtual Patching):

  1. Cryptographic Signatures: Mandate HMAC signing and validation for all serialized pipeline definitions.
  2. Pre-Sink Schema Validation: Implement strict JSON/YAML schema validation to drop any payload containing "unsafe": true.
  3. Runtime Remediation: Implement the provided Python application-layer patch (Appendix A) to strip security parameters prior to framework ingestion.

10. Strategic Security Takeaways

  1. AI Framework Architectures Require Auditing: Conventional vulnerability scanners frequently miss framework-level architectural flaws. Security teams must analyze AI orchestration engines as core infrastructure components with complex trust boundaries.
  2. Serialization Sinks are Critical Vectors: Methods like from_dict() represent primary trust boundaries. Any serialization mechanism processing untrusted data must explicitly filter security-critical parameters prior to object hydration.
  3. Scope Change is a Concrete Threat: RCE within orchestration frameworks easily transitions into persistent infrastructure compromise. The CVSS S:C metric is practically demonstrated when frameworks lack filesystem write restrictions.
  4. Independent Validation is Mandatory: Threat models vary between open-source maintainers and enterprise consumers. Organizations must rely on empirical validation and implement defense-in-depth compensating controls.
  5. Runtime Detection Imperatives: Traditional signature-based detection is inadequate for novel AI execution paths. Organizations must monitor for security flag manipulation and unauthorized template execution natively.

11. Conclusion

The JDP-2026-005 vulnerability within Deepset’s Haystack highlights a critical industry-wide challenge in AI orchestration security design. Relying on a “trusted configuration behavior” model—when the configuration can be arbitrarily altered by untrusted pipeline data—demonstrates a gap in modern framework threat modeling. When a documented security control (unsafe=False) is natively bypassable via the framework’s own ingestion APIs, the deterministic integrity of the application stack is degraded.

This analysis of Insecure AI Orchestration illustrates that conventional application security assumptions are frequently incompatible with AI framework architectures. The vulnerability resides not in an isolated code bug, but in a systemic architectural design that dissolves the boundary between security enforcement and data processing. The continued exposure in current releases underscores the need for organizations to implement immediate, independent compensating controls.

JDP Security advocates for the following industry standard practices to align with OWASP principles:

  1. Deterministic Serialization: Implementation of explicit parameter stripping during deserialization workflows to prevent execution overlap.
  2. Cryptographic Validation: Built-in integrity protections (HMAC/Signatures) for all serialized pipeline components.
  3. Shared Responsibility Clarity: Explicit documentation defining the trust boundaries and limitations of framework-level sandboxing.

Security within AI orchestration cannot rely on implicit trust of serialized data; execution boundaries must be architecturally enforced and deterministically validated.

Appendix A: Application-Layer Mitigation Implementation

1. Runtime Security Patch (Validation Wrapper): Apply this logic at the application entry point to intercept and sanitize untrusted parameters before framework execution.

import haystack.components.converters.output_adapter as oa
import haystack.components.routers.conditional_router as cr

# Hardened OutputAdapter Deserialization
original_from_dict = oa.OutputAdapter.from_dict
@classmethod
def secured_from_dict(cls, data):
    if "init_parameters" in data:
        data["init_parameters"].pop("unsafe", None)
    return original_from_dict(data)
oa.OutputAdapter.from_dict = secured_from_dict

# Hardened ConditionalRouter Deserialization
original_cr_from_dict = cr.ConditionalRouter.from_dict
@classmethod
def secured_cr_from_dict(cls, data):
    if "init_parameters" in data:
        data["init_parameters"].pop("unsafe", None)
    return original_cr_from_dict(data)
cr.ConditionalRouter.from_dict = secured_cr_from_dict

2. Pre-Sink Schema Validation:

from jsonschema import validate, ValidationError

SERIALIZATION_SCHEMA = {
    "type": "object",
    "properties": {
        "init_parameters": {
            "type": "object",
            "properties": {
                "unsafe": {
                    "type": "boolean",
                    "enum": [False]  # Strict enforcement of safe execution
                }
            }
        }
    }
}

def validate_pipeline(data):
    try:
        validate(instance=data, schema=SERIALIZATION_SCHEMA)
        return True
    except ValidationError:
        return False

Appendix B: Disclosure Timeline

Appendix C: Forensic Artifacts and Demonstration Logs

This section provides visual artifacts confirming the execution methodologies and tracking the vulnerability lifecycle across the Haystack orchestration framework.

C.1 Baseline Exploit Demonstration

C.2 YAML Serialization Bypass

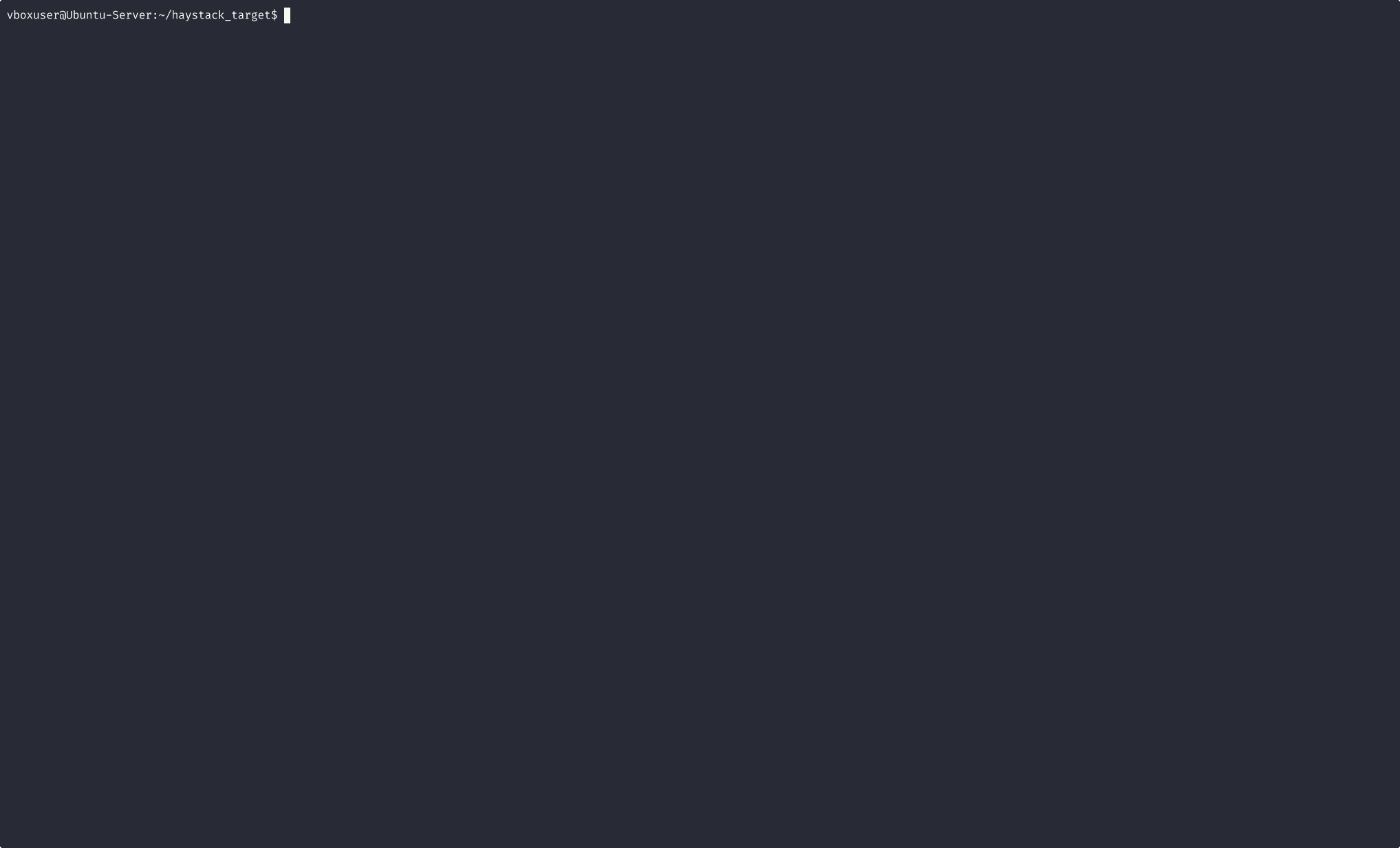

C.3 Framework Integrity Compromise (Scope Change)

C.4 Persistence Verification and Audit
